• Products

    Demonstration& Training: Scheduled online demonstrationsand online training are always provided.

  • Certificate

    Our cobot products have strong backing.

  • Popular Product Offerings

    Show off your projects, features, or clients in this section

    Section image

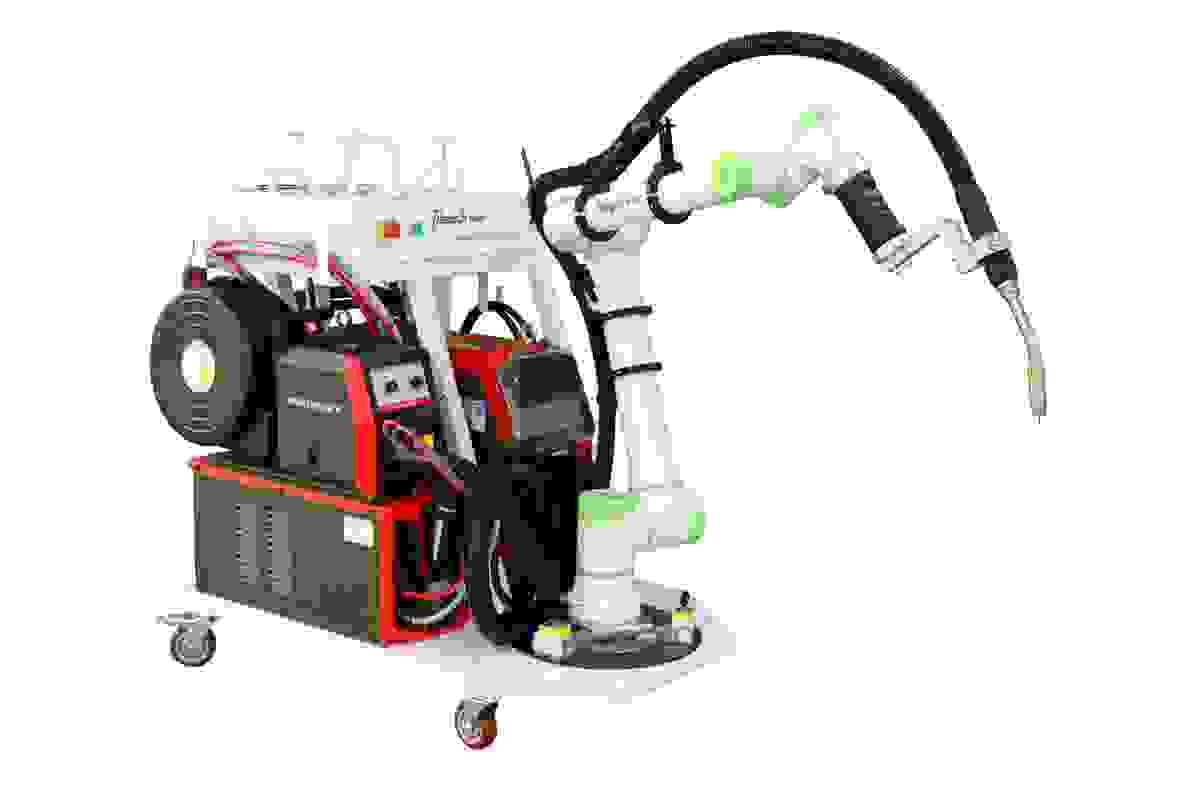

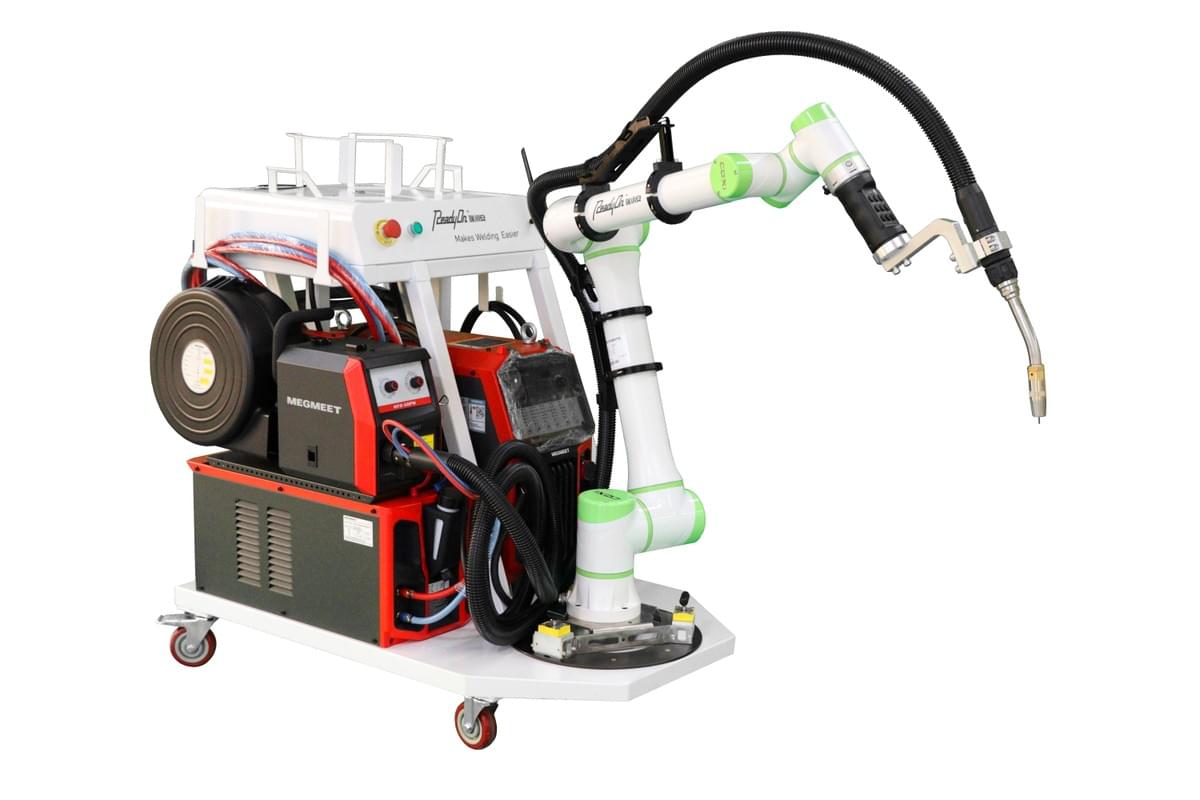

    Trolley type Welding Cobot Unit

    Cobot: G4, G6

    Software: Smart Welder

    Welding Power: MEGMEET Dex 2 M Series / Dex2 L Series

    Features: Ideal for welding small workpieces. Welding table size: 1200 x 800mm; 16mm holes for clamps and fixtures Can be fixed in place or moved around for maximum convenience. Equip a built-in, retractable drawer for collecting welding dust and debris / Optional magnetic pedestal available for enhanced mobility / Multi-station welding is available / Well-organized cable layout / Open frame design for easy maintenance / Durability ensured by high-quality sheet metal fabrication.

    Section image

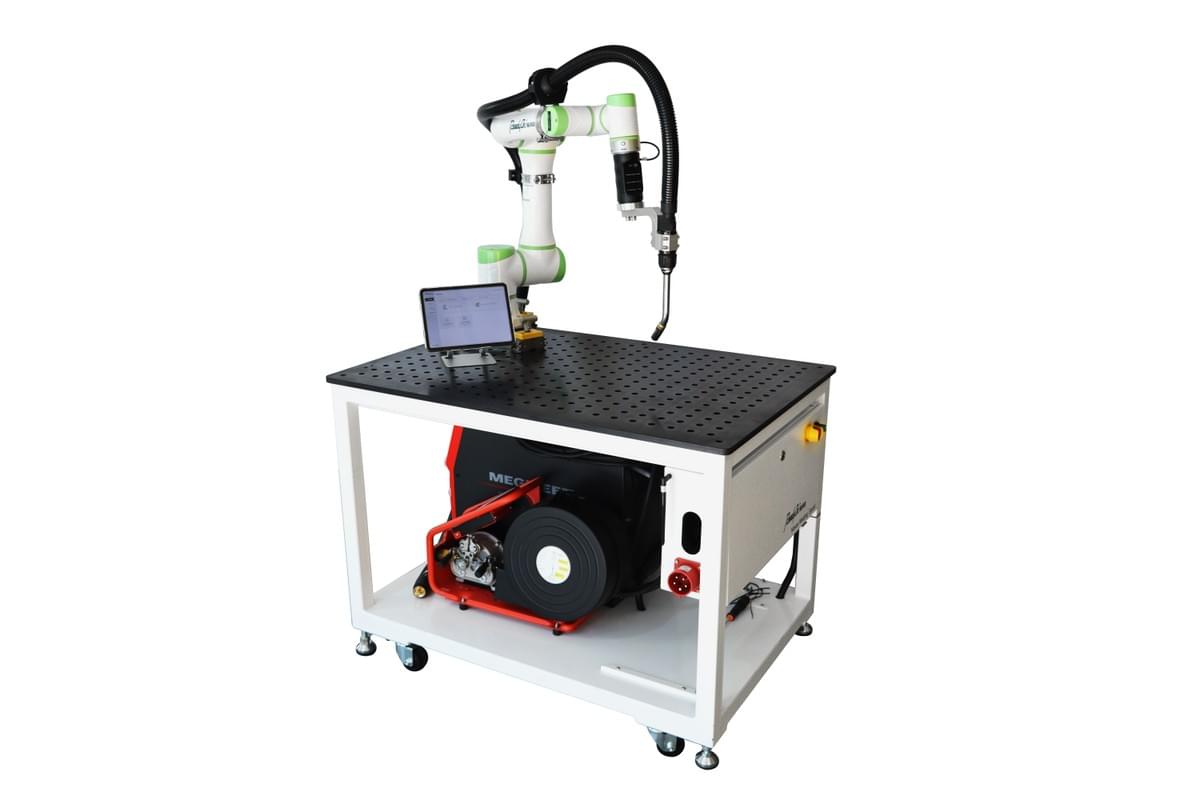

    Welding Table type Welding Cobot Unit

    Cobot: G4, G9, G12, G20

    Software: Smart Welder

    Welding Power:MEGMEET Dex 2 M Series / Dex2 L Series

    Features: Multi-station welding is available / Can replace industrial robots in some scenarios / Easier operation than industrial robots / Well-organized cable layout with integrated cable management / Open frame design for easy maintenance / Durability ensured by high-quality sheet metal fabrication.

    Section image

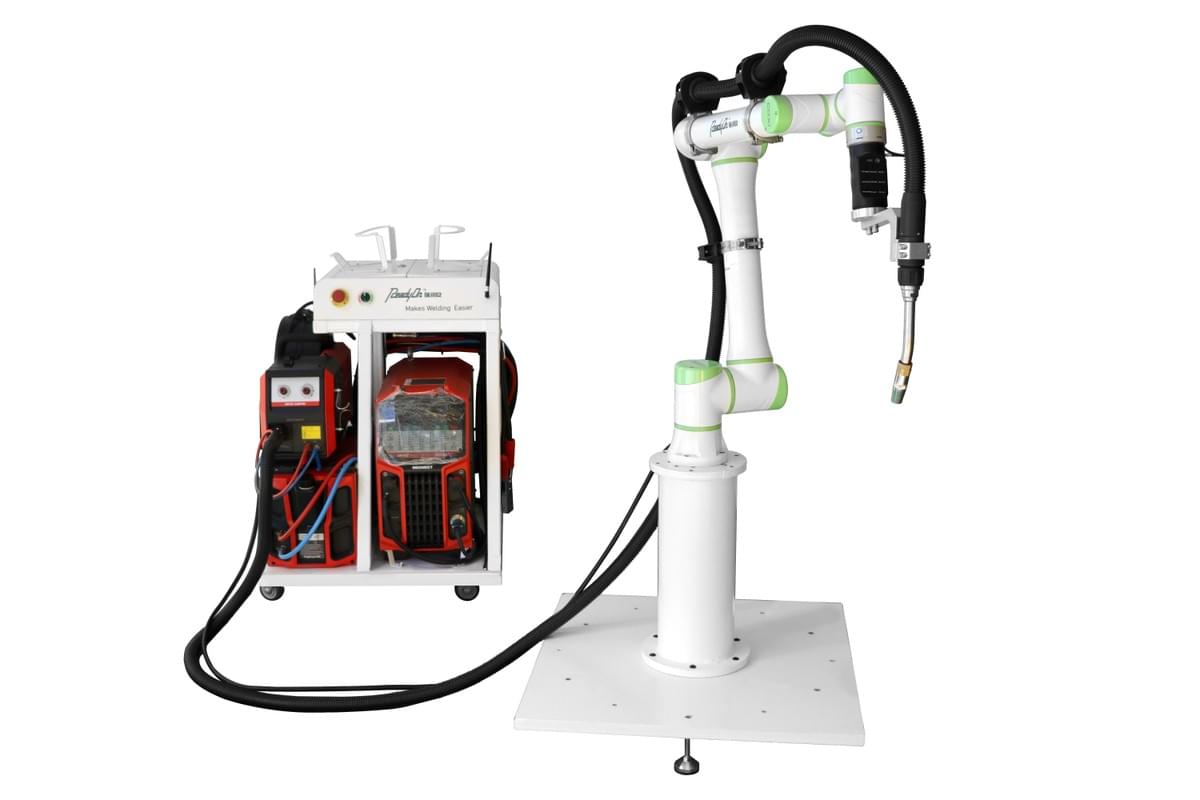

    Fixed-station welding workstation

    Cobot: G4, G9, G12, G20

    Software: Smart Welder

    Welding Power:MEGMEET Dex 2 M Series / Dex2 L Series

    Features: Multi-station welding is available / Can replace industrial robots in some scenarios / Easier operation than industrial robots / Well-organized cable layout with integrated cable management / Open frame design for easy maintenance / Durability ensured by high-quality sheet metal fabrication.

    Section image

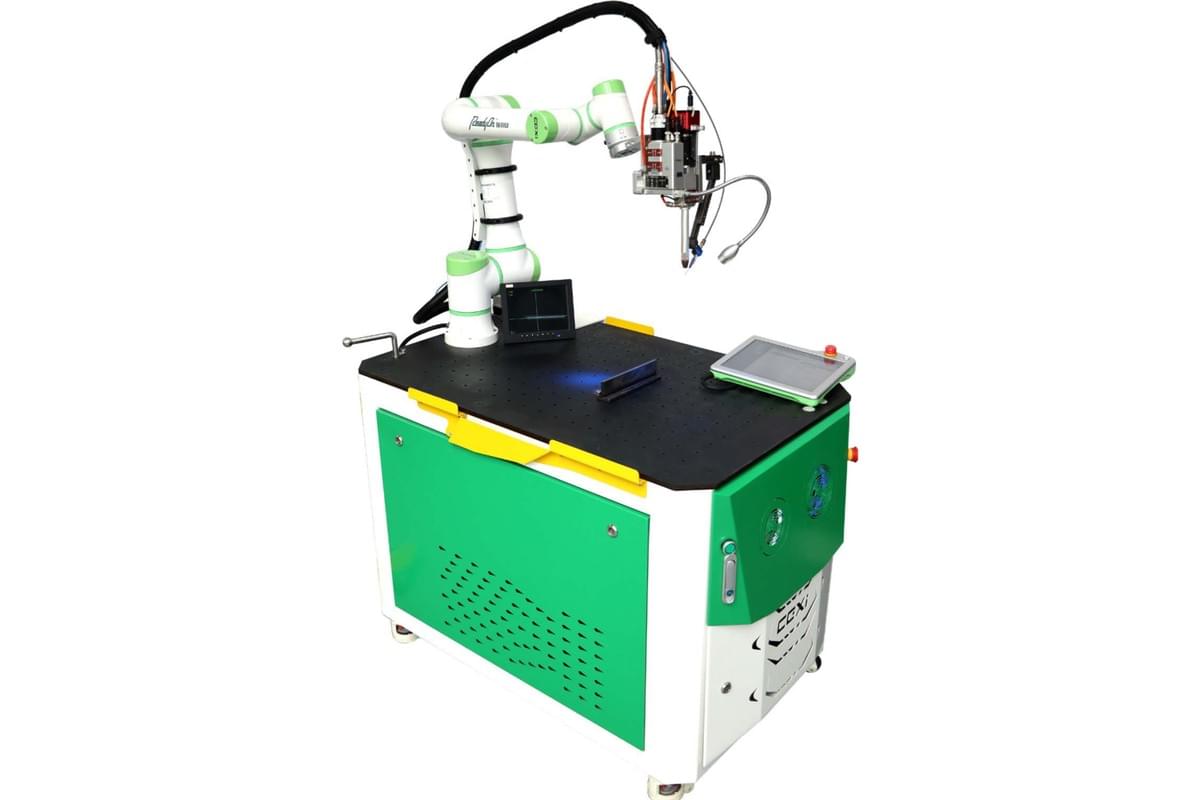

    Laser Welding Unit

    Cobot System: Cobot Arm / Teach Pendant

    Software: LW1.0 Welding Software

    Welding System: Laser Welding Head / Laser source / Chiller / External Wire Feed system (Optional)

    Welding Power: MEGMEET Dex 2 M Series / Dex2 L Series

    Communication: TCP/IP +1/O+AD; RS485; EtherCAT

    Electrical control cabinet: Cobot Controller / Electrical components

    Section image

    Building a welding product ecosystem

    Standardized product services: Provide more standardized product services accordingto different application requirements of users

    System extension: Control systems, welding software, plug-ins, externalaxis systems, vision systems

    Cobot System: EtherCAT, Ethernet,RS485,RS232,SDK secondarydevelopment, graphical/script programming

    Hardware expansion: The use of ground rails, welding positioner, weldingrotator, etc. in conjunction with robots

    Compatibility development of different brands ofwelding machines and cobots

    Laser tracking, 3D structured light camera and othervisual hardware integration applications

  • APP: Smart Welder Version1.2.3 (MIG/MAG)

    The smart welder welding software used in conjunction with the smart keypad will bring you an unprecedented and extremely simple operating experience.

    Easily plan the welding path through the smart keypad, set the welding process parameters on the software, then ready to start welding.

    Features: Templated design of welding process,with a clear interface and simple operation / Multiple screens in one, integrated control / Adapt to Android tablet to solve the cable constraints / Preset more active safety protections / Can be controlled by a teaching device or an Android tablet / Multiple languages are available

    Key Function: Weaving - Circles, Zigzag, Equilateral triangle weaving pattern / Multipass - Easily create a weld with multiple passes / Pitch Angle Ensure that the welding surface is smooth and consistent after multiple welds / Touch Sense - Locate the position of your workpiece and adjust the path / Arc Seam Tracking - Auto-adjust the path with through the arc seam tracking / External Axis - Expand the 7th, 8th or more axis / Profile system Create, save the profile of operator, picture of workpiece and reuse welding parameters

  • Configuration Selection Guide

    The entire series supports custom combinations, allowing you to adjust hardware configurations as needed to match various welding requirements.

    Section image

    Cobot System - CGXI Flexible Collaborative Robot

    G3---Collaborative Robot G3 - 620mm Reach, 3kg Payload. C/w controller and power box

    G4---Collaborative Robot G4 - 1300mm Reach, 4kg Payload. C/w controller and power box

    G6---Collaborative Robot G6 - 917mm Reach, 6kg Payload. C/w controller and power box

    G9---Collaborative Robot G9 - 1500mm Reach, 9kg Payload. C/w controller and power box

    G12---Collaborative Robot G12 - 1300mm Reach, 12kg Payload. C/w controller and power box

    G20---Collaborative Robot G20 - 1800mm Reach, 20kg Payload. C/w controller and power box

    Section image

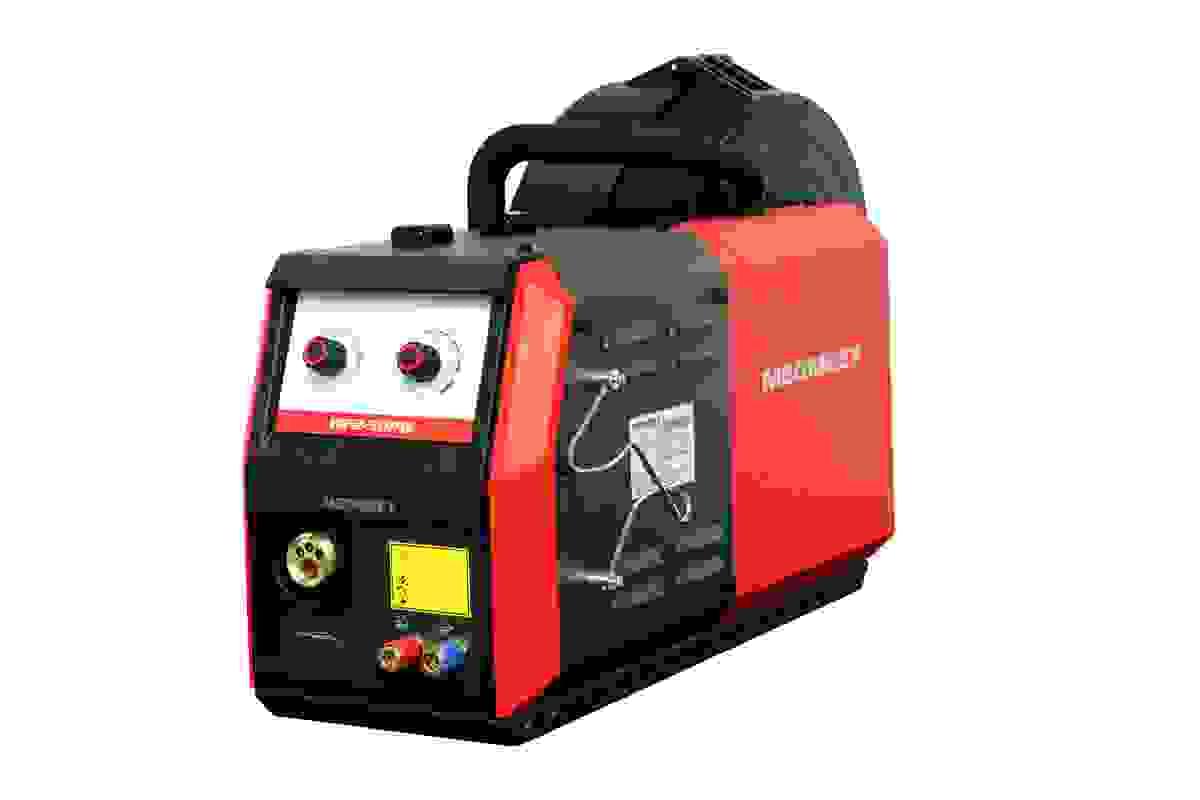

    Welding Source - MEGMEET, Panasonic, More brands developping...

    Dex2 350MDR---MEGMEET Dex2 350MDR, c/w Wire Feeder WF2-50PW; EtherCAT communication

    Dex2 500MDR---MEGMEET Dex2 500MDR, c/w Wire Feeder WF2-50PW; EtherCAT communication

    Dex2 350MPR---MEGMEET Dex2 350MPR, c/w Wire Feeder WF2-50PW; EtherCAT communication

    Dex2 500MPR---MEGMEET Dex2 500MPR, c/w Wire Feeder WF2-50PW; EtherCAT communication

    Dex2 350MQR---MEGMEET Dex2 350MQR, c/w Wire Feeder WF2-50PW; EtherCAT communication

    Dex2 500MQR---MEGMEET Dex2 500MQR, c/w Wire Feeder WF2-50PW; EtherCAT communication

    YD-350FT3---Panasonic YD-350FT3HPS, C/w Wire Feeder YWFT3HPS; EtherCAT communication

    YD-500FT3---Panasonic YD-500FT3HPS, C/w Wire Feeder YWFT3HPS; EtherCAT communication

    Section image

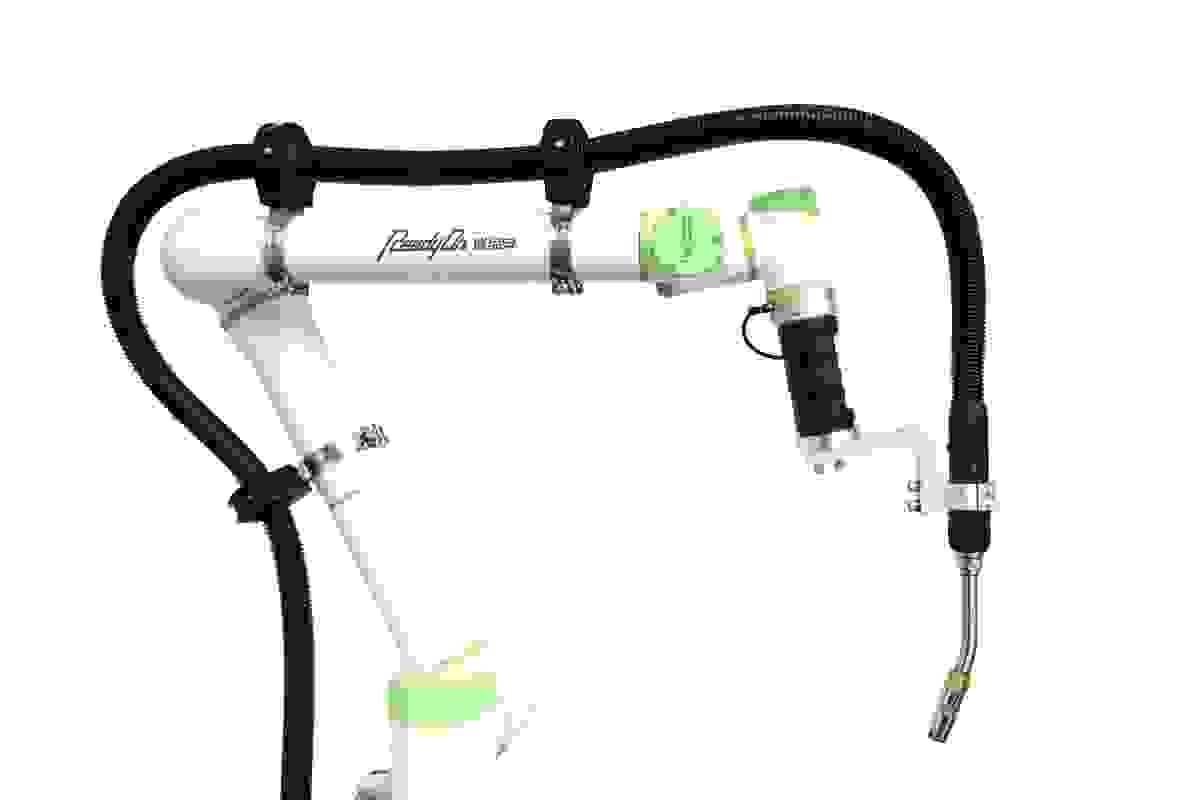

    Welding Torch - UK Brand Parweld，TRM

    RW502X----Water Cooling: Parweld MIG 500A/ MAG 450A Duty circle 100% Welding Torch, 35° Neck, Cable 3M

    TRM605WHD---Water Cooling: TRM MIG 500A Duty circle 100%, 22° Neck, Cable 3M（G6a，G9a，G12a，G20a）

    Section image

    Hardware Integration Type - Trolley or Welding Table

    W2502TE---Moveable Trolley with Magnetic base

    W2503TB---Nelding Table 120ox80omm, 16mm holes for clamps and fixtures

    W2504MP---Mounting Post for a fixed position, Height 65omm

  • Configuration Selection Guide

    Instructions: Select one of the four categories above to form the configuration. For example, G4+500MPR+TRM605WHD+HW2502TE will be a complete configuration. When multiple different configurations are required, please advise us according to the example above.

    With a variety of customizable configuration options, you can freely combine, match and adjust each configuration until the final selection perfectly matches your needs. To better understand your needs and speed up our response, please complete the configuration options. Each of your preferences will guide our team to provide faster and more accurate service.
